Step 3: Make our Application Interactive with Javascript
Here’s the complete code for main.js:
var gridSize = 10
var iconList = [
'bluetooth', 'brightness_high', 'directions_transit', 'settings',
'event', 'headset', 'help', 'insert_chart', 'library_music'
]
var html = setupHTML()
listenEvents()
//Send it
setInterval(() => {
updatePosition()
updateIconSizes()
}, 1000/60)
function setupHTML(){
var html = {
container: document.querySelector('.container'),
plane: document.querySelector('.plane'),
appClose: document.querySelector('.app .close')
}
for(var i = 0; i < gridSize; i++){
var icons = ''
for(var o = 0; o < gridSize; o++){
icons += `
<div class="icon">
<div class="draw">
<i class="material-icons">${utilChoose(iconList)}</i>
</div>
</div>`
}
html.plane.innerHTML += `<div class="row">${icons}</div>`
}
html.icons = document.querySelectorAll('.icon')
return html
}
function listenEvents(){
var that = this
for(var i = 0; i < html.icons.length; i++){
html.icons[i].addEventListener('mouseup', function(e){
that.eventIconClick(this, e)
})
}
html.container.addEventListener('mousedown', function(e){ eventMouseDown(pos(e)) })
html.container.addEventListener('mouseup', function(e){ eventMouseUp(pos(e)) })
html.container.addEventListener('mouseleave', function(e){ eventMouseUp(pos(e)) })
html.container.addEventListener('mousemove', function(e){ eventMouseMove(pos(e)) })
html.appClose.addEventListener('click', function(e){ eventCloseApp() })
}
function eventMouseUp(pos){
if(mouse.state == 'up') return
mouse.state = 'up'
}
function eventMouseDown(pos){
mouse.state = 'down'
mouse.pos.offset = utilTransfer(pos)
mouse.pos.move = utilTransfer(pos)
}
function eventMouseMove(pos){
if(mouse.state === 'up') return
mouse.state = "move"
mouse.pos.move = utilTransfer(pos)
}
function eventIconClick(ele, event){
if(mouse.state === 'move') return
ele.classList.add('open')
html.container.classList.add('open')
var box = ele.getBoundingClientRect()
var contBox = html.container.getBoundingClientRect()
mouse.pos.click = {
x: mouse.pos.current.x - (box.left - contBox.left) + contBox.width/2 - box.width/2,
y: mouse.pos.current.y - (box.top - contBox.top) + contBox.height/2 - box.height/2
}
}
function eventCloseApp(pos){
html.container.classList.remove('open')
for(var i = 0; i < html.icons.length; i++){
html.icons[i].classList.remove('open')
}
}
//-------------------------------------------------------------------------------//
//-------------------------------| Positioning |---------------------------------//
//-------------------------------------------------------------------------------//
var mouse = {
state: 'up',
pos: {
offset: {x: 0, y: 0},
move: {x: 0, y: 0},
current: {x: 0, y: 0},
click: {x: 0, y: 0},
old: {x: 0, y: 0}
}
}
function updatePosition(){
// This is going to get bumpy
if(mouse.state == "move"){
mouse.pos.current.x += mouse.pos.move.x - mouse.pos.offset.x
mouse.pos.current.y += mouse.pos.move.y - mouse.pos.offset.y
mouse.pos.offset = utilTransfer(mouse.pos.move)
mouse.pos.click = utilTransfer(mouse.pos.current)
}
if(mouse.state == "up"){
mouse.pos.current.x -= (mouse.pos.current.x - mouse.pos.click.x)/10
mouse.pos.current.y -= (mouse.pos.current.y - mouse.pos.click.y)/10
}
var transform = `translateX(${mouse.pos.current.x}px) translateY(${mouse.pos.current.y}px)`
html.plane.style.transform = transform
}
function updateIconSizes(){
for(var i = 0; i < html.icons.length; i++){
// position
var contBox = html.container.getBoundingClientRect()
var iconBox = html.icons[i].getBoundingClientRect()
var iconCenter = {
x: iconBox.left+iconBox.width/2,
y: iconBox.top+iconBox.height/2
}
var contCenter = {
x: contBox.left + contBox.width/2,
y: contBox.top + contBox.height/2
}
var center = {
x: (contCenter.x - iconCenter.x),
y: (contCenter.y - iconCenter.y)
}
var distance = Math.min(Math.floor(utilDistance({x:0, y:0}, center)), contBox.width/2)
var percent = Math.min((1 - distance/(contBox.width/2))*1.5, 1)
var iconDraw = html.icons[i].getElementsByClassName('draw')[0]
iconDraw.style.transform = `translateX(-50%) translateY(-50%) scale(${percent}, ${percent})`
iconDraw.style.opacity = percent
}
}
function pos(e){
var box = html.container.getBoundingClientRect()
return {
x: e.clientX - box.left,
y: e.clientY - box.top
}
}
function utilChoose(arr){
return arr[Math.floor(Math.random()*arr.length)]
}
function utilTransfer(obj){
return JSON.parse(JSON.stringify(obj))
}
function utilDistance(pos1, pos2){
return Math.sqrt(Math.pow((pos2.x - pos1.x),2) + Math.pow((pos2.y - pos1.y),2))
}
Step 4: Testing the application

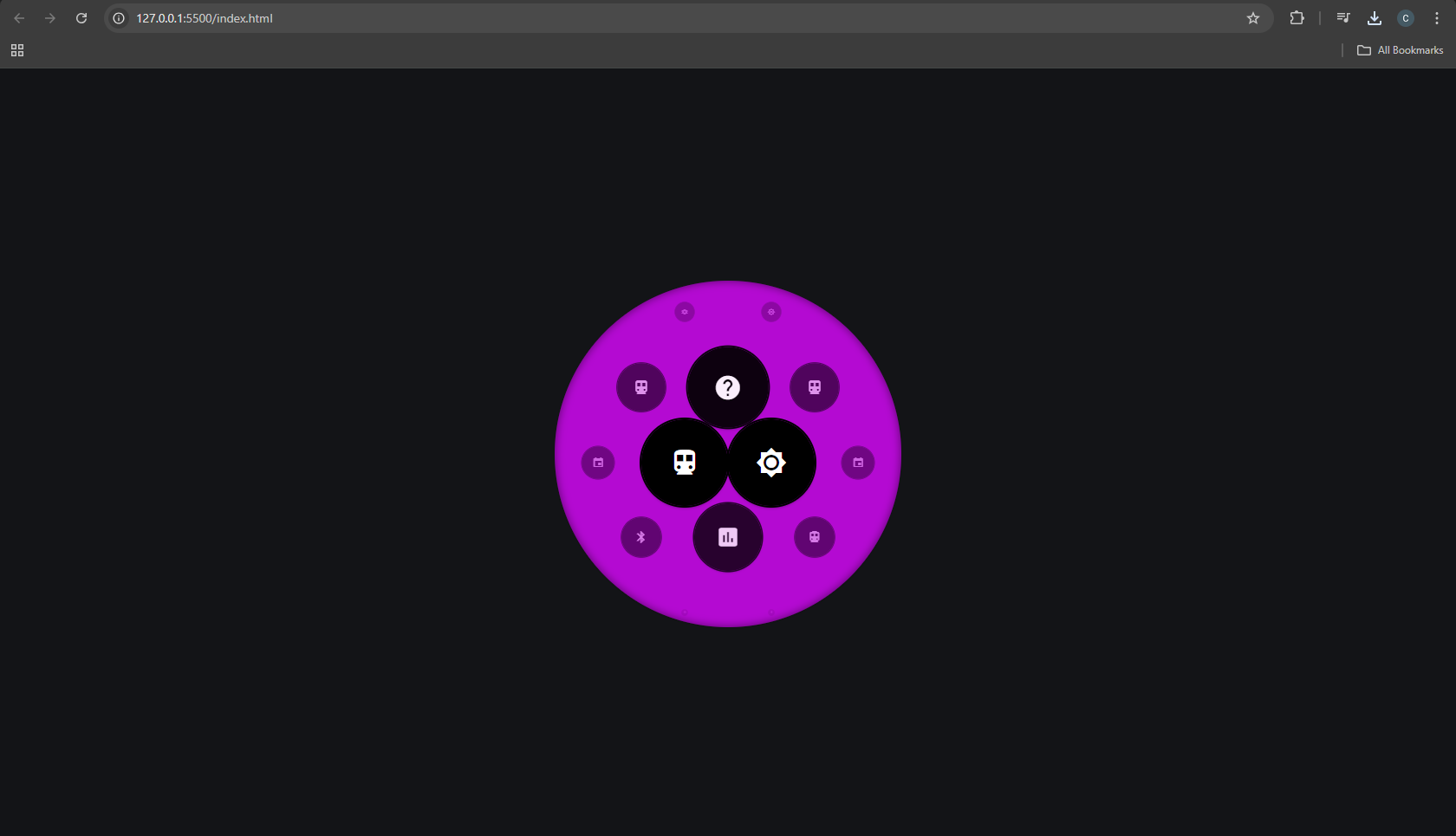

Open the index.html file in your browser: Interactivedrag.png58.6 KB
Project Recap:
In this project we demonstrate how to build a creative and interactive web application using fundamental web technologies. Feel free to expand this tutorial.
What’s Next?
If you enjoyed this tutorial, check out our other posts on animations and UI design.
